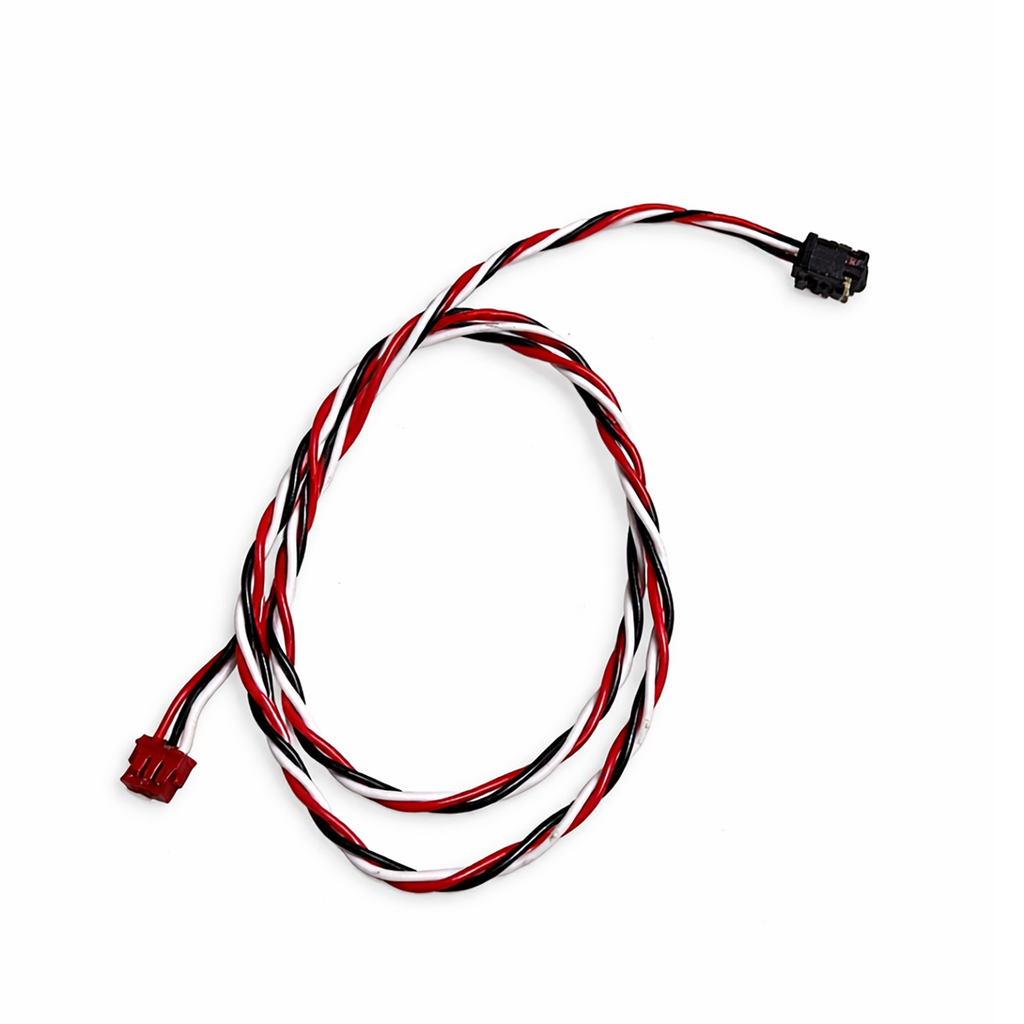

Genuine Epson ET-8550 LD Sensor Cable - 3-Wire Harness, Black Sensor Plug to Red CN59 Mainboard Plug
$15.99
This listing is for the wire harness for the ET-8550 LD sensor.
The wire has three wires and connects the LD shaft disc photo interrupter sensor to the mainboard.
Not sure what a part is called? Need the ET-8550 parts list? Want to learn how to work on it? Check out our ET-8550 Exploded Parts Diagram & Repair Reference Guide: https://bchtechnologies.com/products/et-8550-et8550-exploded-parts-diagram-repair-reference-guide-annotated-edition
Features:
3-wire harness
Black plug on one end connects to the photo interrupter sensor for the LD shaft disc
Red plug on the other end connects to CN59 (LD Phase Sensor) on the mainboard
This is a replacement wire for the ET-8550 LD sensor circuit.
Important notes:
For ET-8550
Listing is for the wire only
Does not include the sensor, mainboard, or LD shaft disc
Please compare your connectors and board connection before ordering
Here is a slightly more polished sales version:
ET-8550 LD Sensor Wire - 3-Wire Harness, Black Sensor Plug to Red CN59 Mainboard Plug
Pulled from an ET-8550 printer, this listing is for the LD sensor wire harness. It uses a black connector to plug into the photo interrupter sensor for the LD shaft disc, and a red connector to plug into CN59, labeled LD Phase Sensor, on the mainboard. This is a useful replacement for a damaged or missing LD sensor wire in the ET-8550.
