QF1 MOSFET Transistor for L1800 Artisan 1430 – CB53 MAIN Printer Mainboard Power Circuit Repair Replacement
Replacement QF1 MOSFET transistor for printer mainboard repair. The QF1 transistor works with the F1 fuse in the printhead power circuit, switching the power path from the printer's power supply...
$15.99 $19.99
SKU:
AS-L1800-QF1
Categories:
Tags:

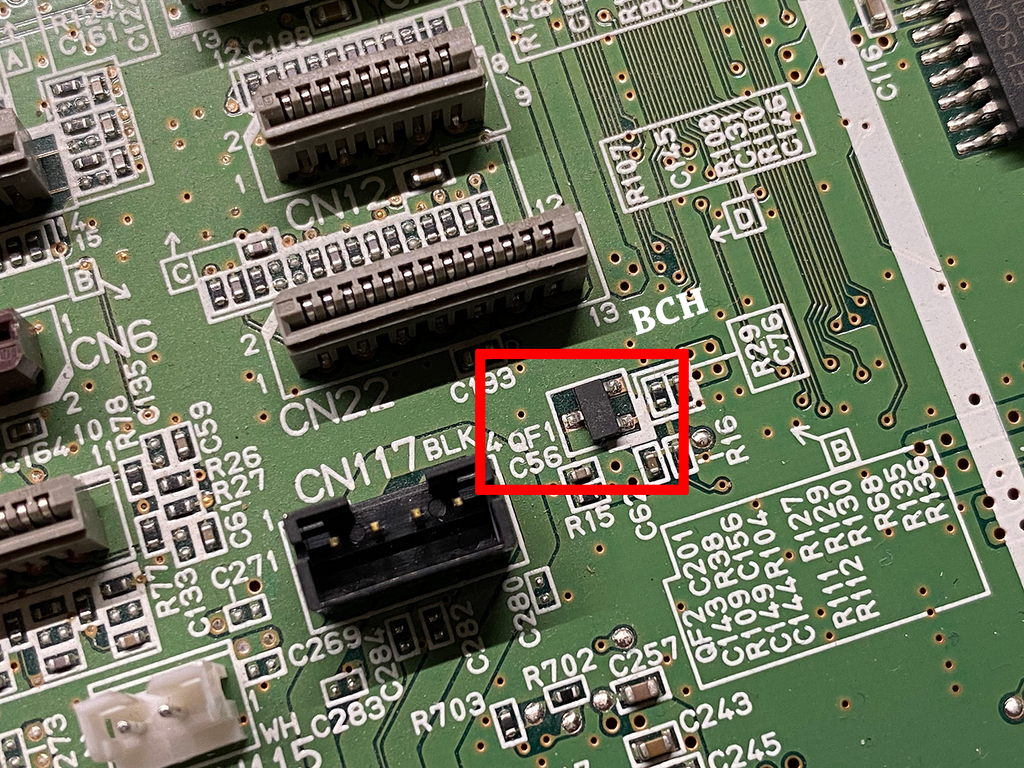

Replacement QF1 MOSFET transistor for printer mainboard repair. The QF1 transistor works with the F1 fuse in the printhead power circuit, switching the power path from the printer's power supply toward the printhead driver circuitry. If the F1 fuse has blown due to a printhead, cable, ink contamination, or electrical short, the QF1 transistor may also be damaged and should be tested before replacing the fuse alone.
Common Uses
Replace a damaged, burned, missing, or shorted QF1 transistor
Mainboard-level printer repair
Repair damage caused while replacing the F1 fuse
Troubleshoot printhead power-circuit failures
Useful when the F1 fuse repeatedly fails or the printhead receives no power
Installation
This is a surface-mount electronic component and requires board-level soldering experience. Hot-air rework equipment is recommended for removal and installation. In our repair process, the original component is removed with hot air, the pads are cleaned, and the replacement is installed using solder paste and hot air.
Important
Replacing QF1 does not automatically repair the underlying problem that caused it to fail. Always inspect and test the F1 fuse, printhead, printhead cables, connectors, and surrounding circuitry before powering the printer back on.
Package Includes

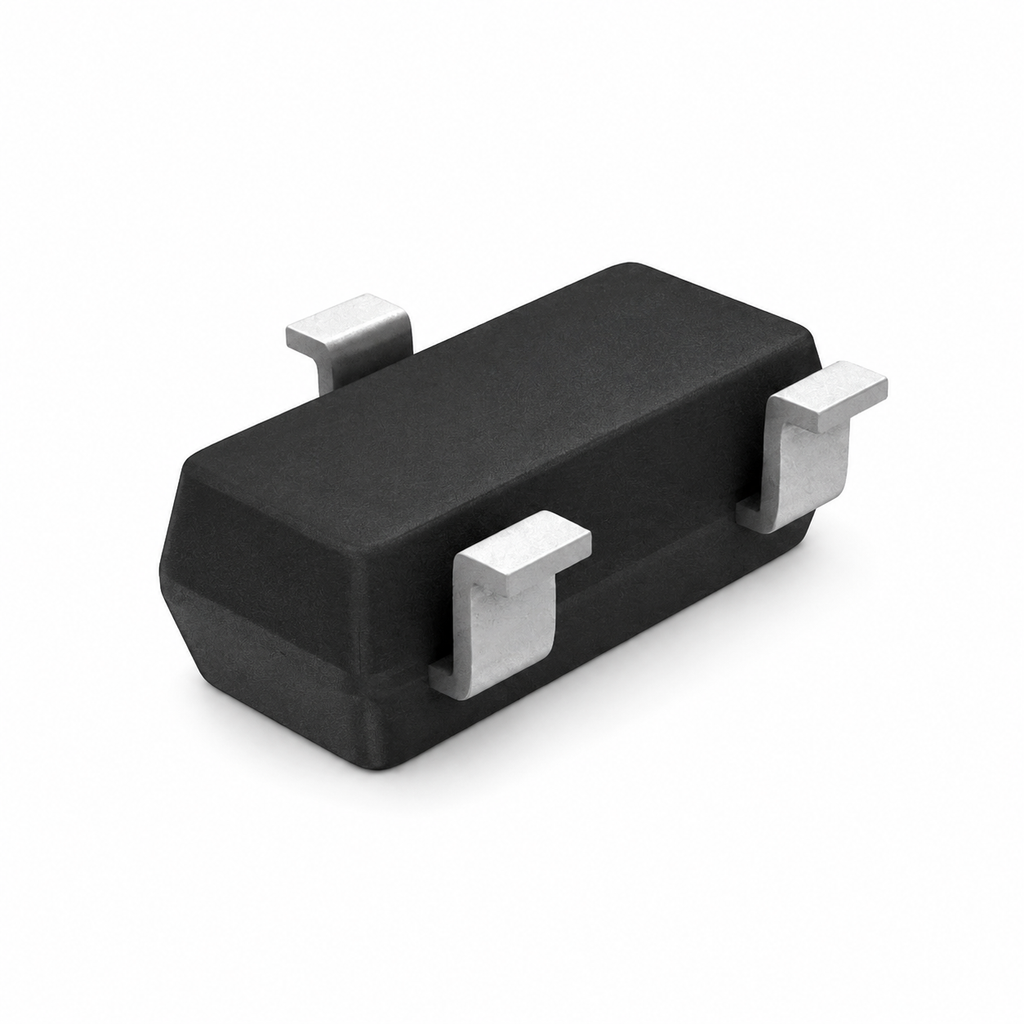

1 × QF1 MOSFET Transistor
Sold individually as shown.
Professional installation is recommended. This component is intended for technicians and experienced DIY electronics repair.
