Genuine Pickup Arm Tension Spring for Epson ET-8550 Cassette 2 Paper Feed Assembly

Restore proper movement and tension to the lower paper pickup mechanism with this replacement pickup arm spring. This small compression spring installs inside the pickup arm assembly and helps maintain the pressure needed for the pickup roller to contact the paper correctly.

A missing, damaged, weakened, or incorrectly installed spring may prevent the pickup arm from moving properly, contributing to delayed paper pickup, repeated feed attempts, "Out of Paper in Cassette 2" messages, or certain paper-feed and false paper-jam symptoms.

Technical Specifications

Compatible Model: Epson EcoTank Photo ET-8550
Component Type: Pickup arm compression/tension spring
Installation Location: Lower cassette pickup arm assembly
Material: Metal spring steel
Function: Maintains pickup-arm tension and roller contact pressure

Key Features

Restores Pickup Arm Tension
Helps the pickup arm return to the correct position and maintain proper pressure against the paper.

Helps Correct Paper-Feed Problems
May resolve feeding issues caused by a missing, weak, bent, or damaged pickup-arm spring.

Direct Replacement Part
Designed for installation in the original spring position inside the ET-8550 pickup arm assembly.

Small but Essential Component
The printer may fail to pick up paper correctly when this spring is missing or no longer provides sufficient tension.

Common Symptoms
"Out of Paper in Cassette 2" message when paper is loaded
Pickup roller does not lower or contact the paper properly
Repeated paper-pickup attempts
Delayed or inconsistent feeding
False paper-jam or paper-feed errors
Pickup arm does not return to its proper position
Installation Overview
Turn off and unplug the printer.
Remove Paper Cassette 2.

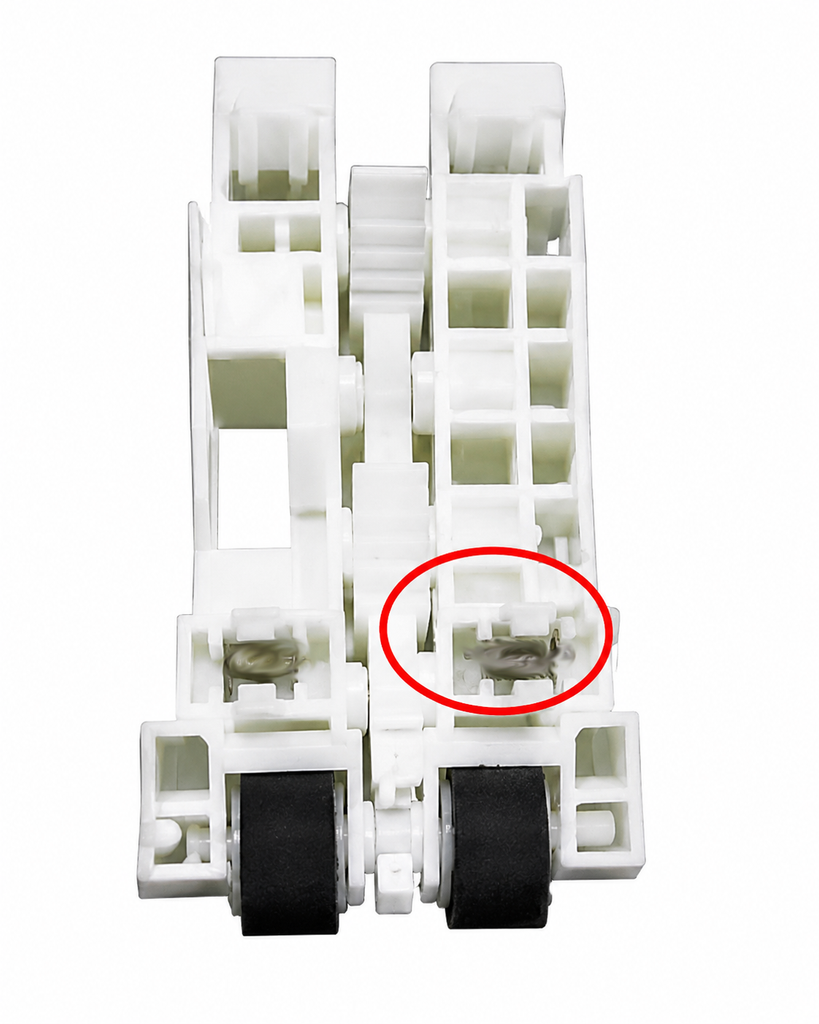

Access and remove the lower pickup arm assembly.
Separate the pickup arm as needed to reach the spring location.

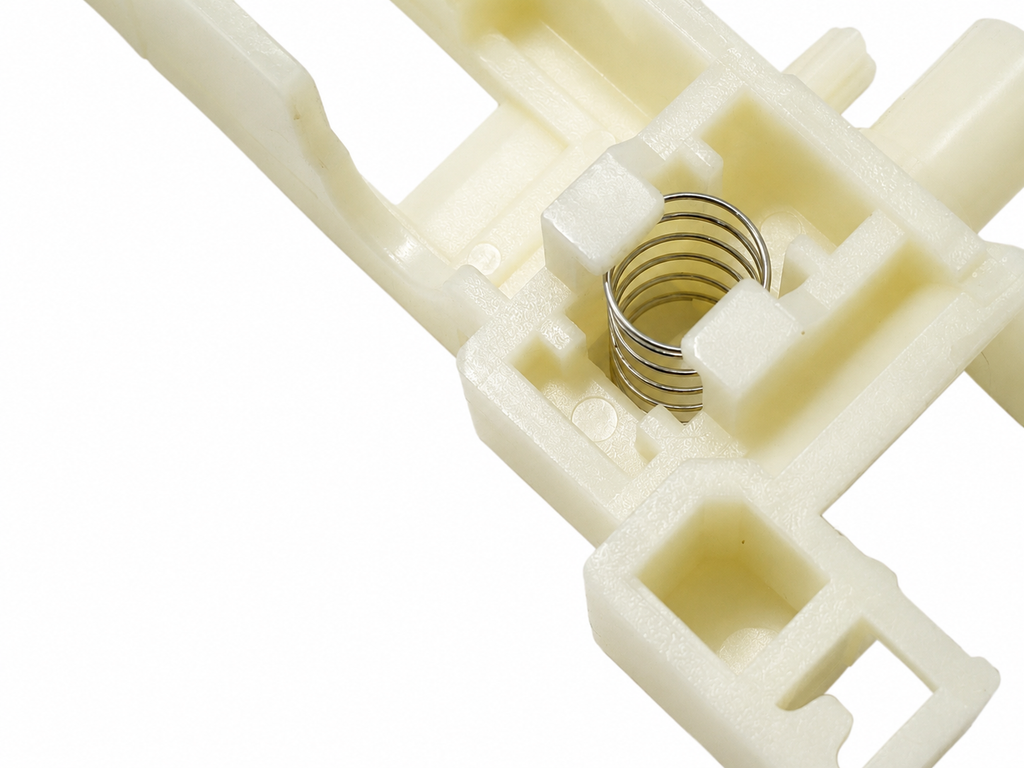

Install the replacement spring in the original mounting position.
Confirm that the spring is seated correctly and that the pickup arm moves freely.
Reassemble the pickup mechanism and reinstall the cassette.

Professional installation is recommended if you are unfamiliar with printer disassembly or small internal mechanical components.

Package Includes

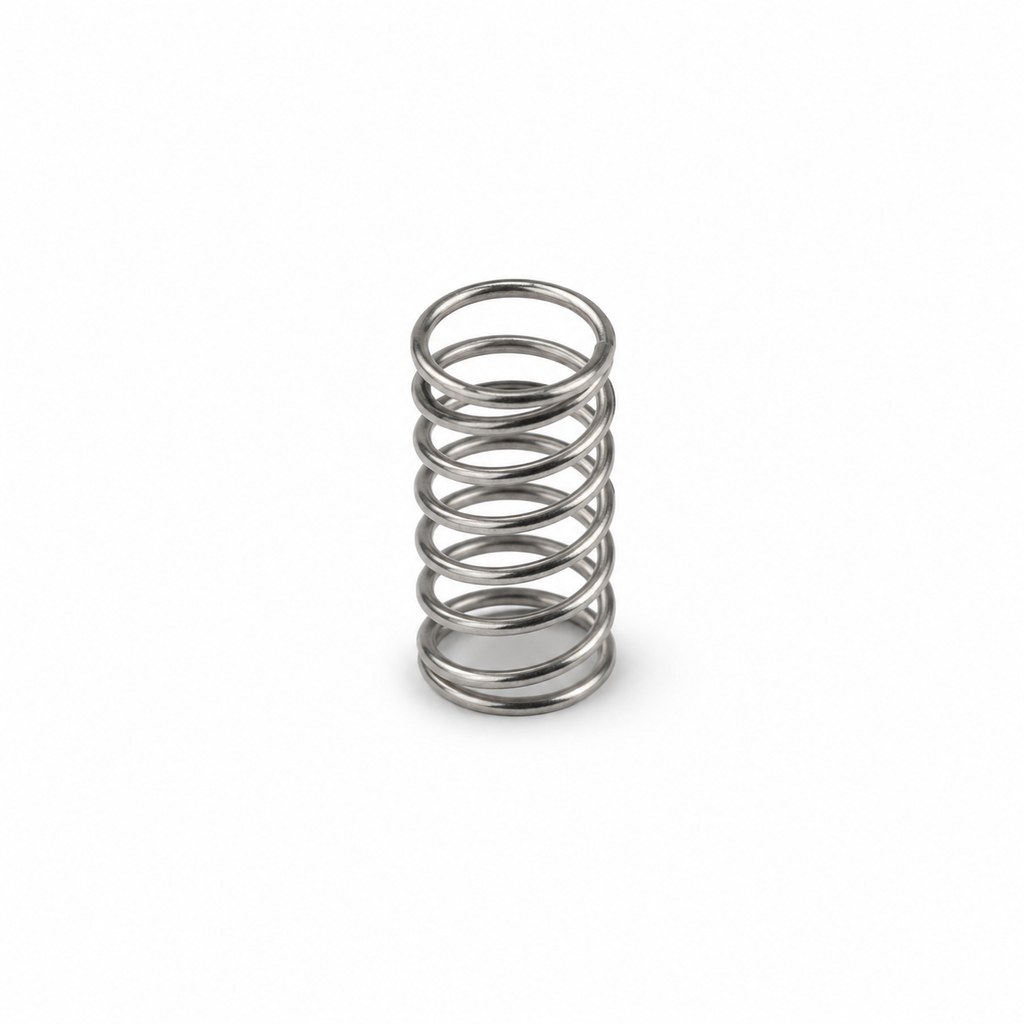

1 × Replacement Pickup Arm Spring

Pickup arm, roller assembly, printer, and other components shown in installation photos are not included.
