Short Description

Learn how to diagnose, unclog, disassemble, and rebuild the ET-8550 capping station with this two-part repair video course from BCH Technologies. These videos cover both the tubing/pump side and the gear/platform/wiper side, giving you a complete walkthrough for one of the most common ET-8550 service problems.

Full Product Description

If your ET-8550 has capping station problems, clogged waste tubes, poor suction, weak cleaning cycles, a stuck wiper, or a platform that will not raise and lower correctly, this two-part video course walks you through the repair step by step.

This training is designed for technicians, DIY repair users, DTF conversion users, and anyone who wants a deeper understanding of how the ET-8550 capping station works. Instead of guessing which part is clogged or broken, you will learn how to test the station, identify the failure area, and service the tubing, peristaltic pump, gears, wiper, platform, foam pad, and printhead lock mechanism.

Video 1: Capping Station Tubing, Pump, and Clog Repair

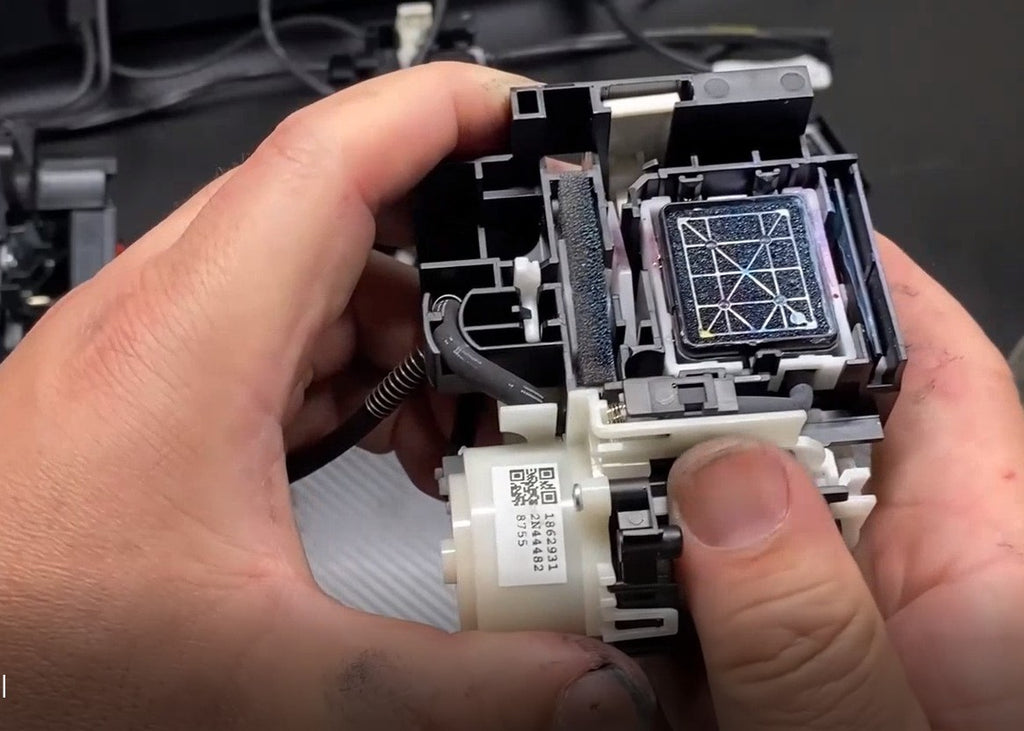

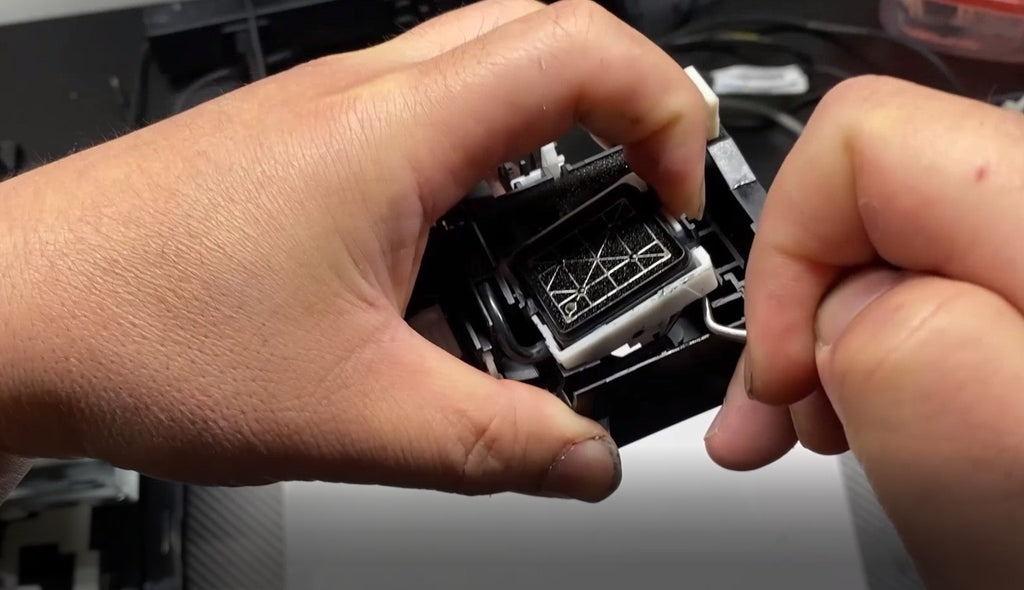

The first video focuses on diagnosing and fixing capping station clogging problems. You will learn how to remove the capping station, test whether it is clogged by adding water and pulling from the waste tube, and understand the difference between a working and blocked station. Kevin also explains how the capping station gear drives the wiper and platform, while the foam pad is moved by the printhead instead of the gear system.

This section covers the peristaltic pump, which is often where the clog forms. The video shows how to separate the pump, remove the tube, flush the line, shorten or extend tubing when needed, use connectors, reinstall the pump core, position the roller correctly, and verify that the pump rotates properly before reinstalling the screw and putting the capping station back into the printer.

Video 2: Capping Station Gears, Wiper, Platform, Foam Pad, and Lock Mechanism

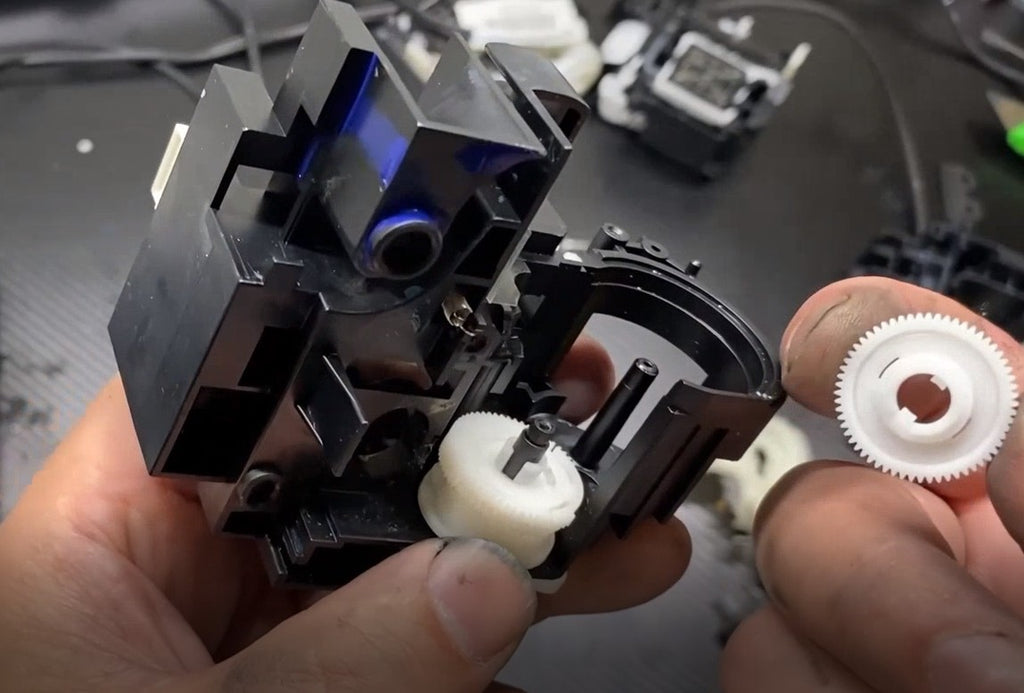

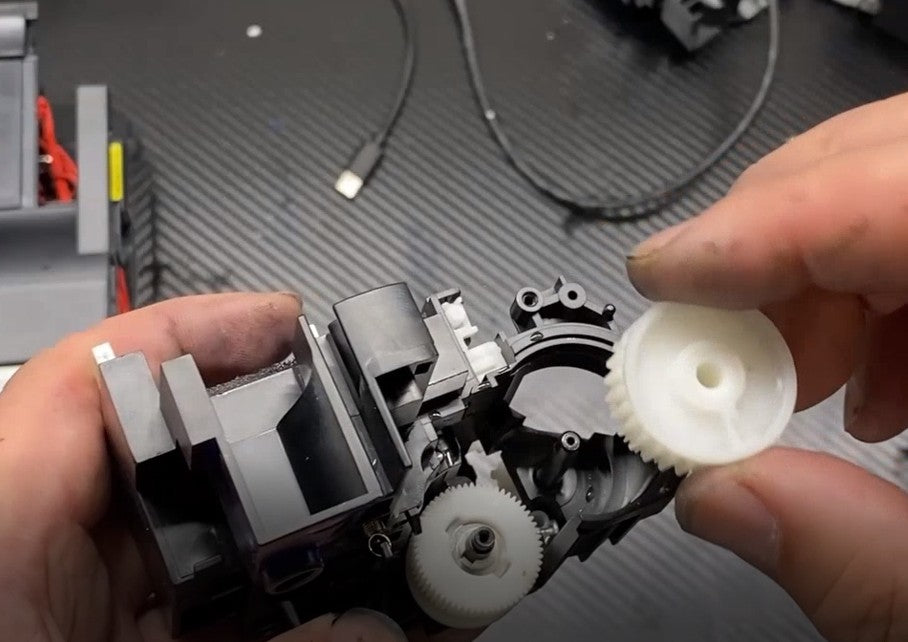

The second video continues from the plumbing section and focuses on the mechanical gear system. You will learn how to remove and reinstall the wiper assembly, platform, springs, slider, air intake control, gears, foam pad lever, and printhead lock mechanism. Kevin explains how the slider opens and blocks the air intake, how the L-shaped lever works, how the main drive gear interacts with the gear stack, and how to correctly align the small tabs, springs, washers, and holders during reassembly.

This video is especially useful if the capping station is not moving correctly, the wiper is stuck, the platform does not rise, the printhead lock is not functioning, or a small gear or tab has broken during service. It also includes reassembly tips, dry-run testing, and final movement checks so you can confirm that the gear system and slider are working before reinstalling everything.

What You Will Learn

• How to remove the ET-8550 capping station
• How to test whether the capping station is clogged
• How to identify tubing clogs versus gear/mechanical problems
• How the capping station wiper, platform, foam pad, and drive gear work
• How to service the peristaltic pump and unclog the waste tube
• How to reinstall the pump tube, roller, core, and cover correctly
• How to rebuild the gear stack and understand gear orientation
• How to remove and reinstall the wiper assembly
• How to service the platform, slider, air intake control, and springs
• How to handle the foam pad lever and printhead lock mechanism
• How to test movement before final reassembly

Ideal For

• ET-8550 owners repairing their own printer
• DTF conversion users
• Printer repair technicians
• BCH Technologies customers using replacement capping station parts
• Users troubleshooting poor suction, clogged waste lines, or failed cleaning cycles
• Anyone who wants to understand the ET-8550 capping station before buying or replacing parts

Important Notes

This is a repair training video package. It is intended for users who are comfortable working with small printer parts, springs, gears, tubing, and delicate plastic tabs. Printer repair can be challenging, and small parts can break if forced. Watch the full video before starting your repair, work slowly, and keep track of each spring, roller, tab, and gear orientation.

Replacement parts and repair supplies may be available from BCH Technologies at bchtechnologies.com.
