Printhead FFC Cable for Epson EcoTank ET-2720 ET-2500 ET-2750 ET-2760
$15.99

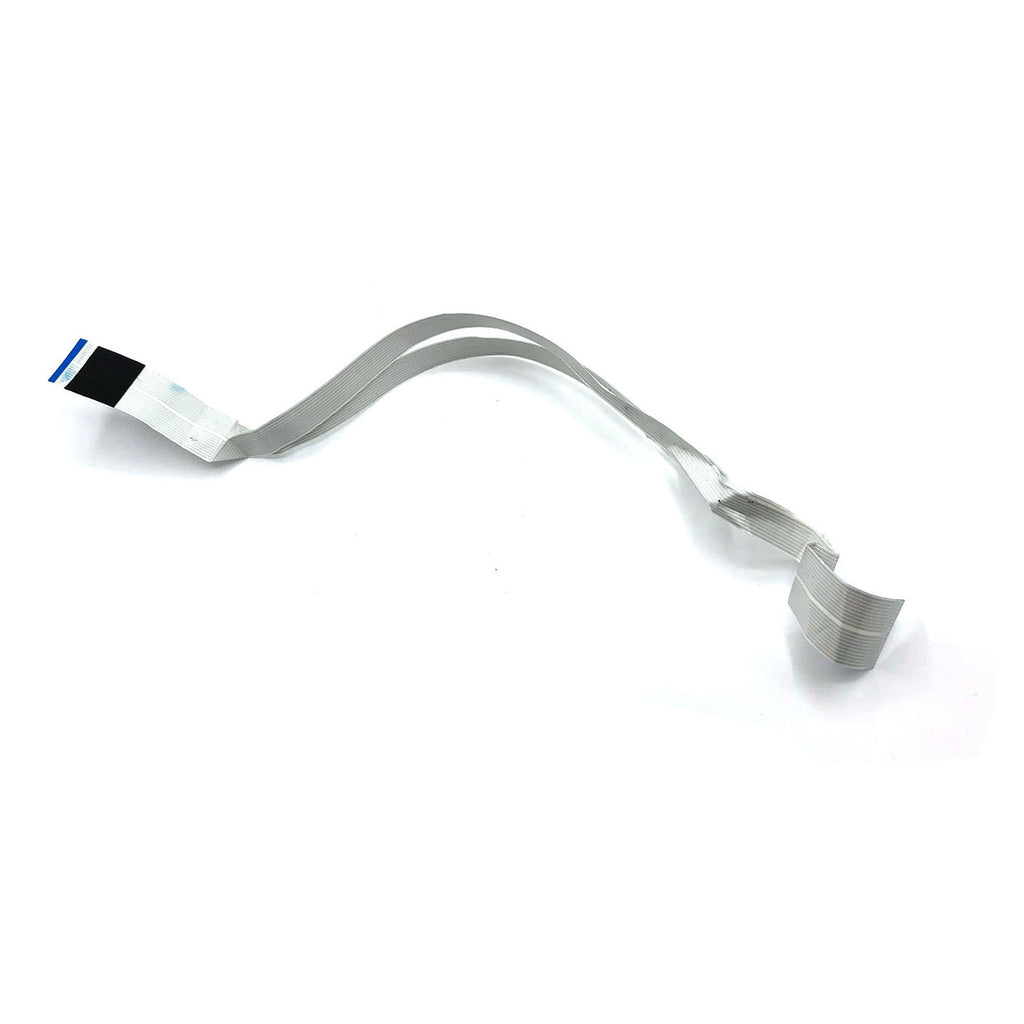

This is the Printhead FFC Cable (not the sensor cable)
For Epson ET-2500, ET-2720, ET-2750, ET-2760... You can use it for other EcoTank printers that use same pin configuration and length. Notice this is a printhead cable. You may also have a seperate sensor cable.
For example:
- ET-2750 uses this printhead cable, plus a 7-pin sensor cable: https://16wht3gau7.mybigcommerce.com//7-pin-carriage-cr-encoder-pw-sensor-ffc-cable-for-epson-ecotank-et-2750/
- ET-2720 uses this printhead cable, plus a 4-pin sensor cable (select 40 cm): https://16wht3gau7.mybigcommerce.com//4-pin-flat-flex-cable/

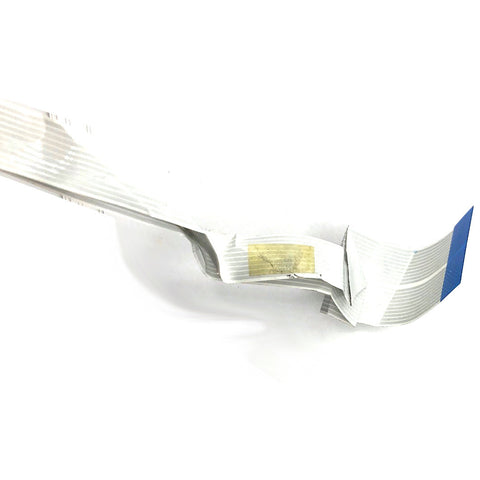

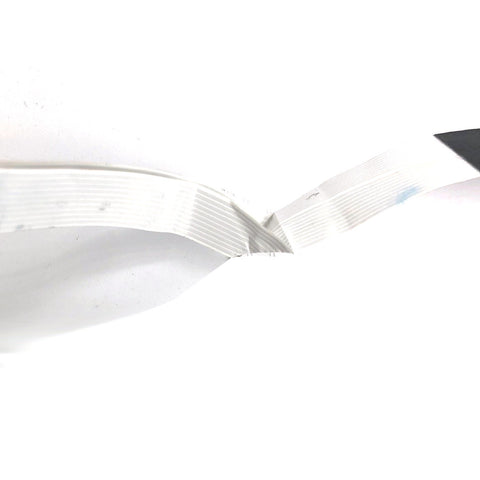

Their folding may be different and you may need to fold it in a different way. Each cable should stand 20+ 180-degree foldings.
- Pin: 20-pin: 10 pin x 2
- Length: 390 mm, about 15.3 inches
- Folding: the cable is taken from ET-2750 or ST-2000

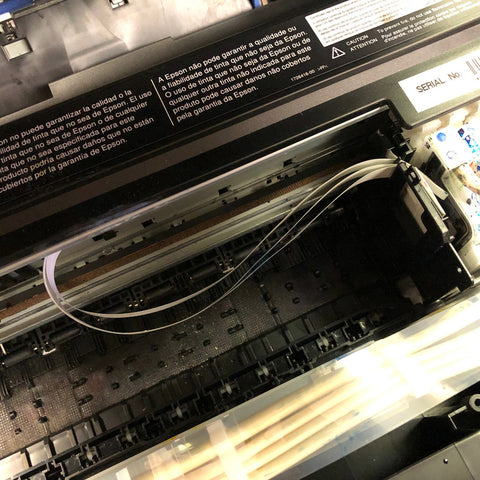

Two cables are connected to the printhead carriage:
-
Printhead Cable: This is a broad 20-pin cable that plugs into the printhead at the printhead carriage. It then bifurcates into two 10-pin separate cables, which subsequently converge again to connect to the CN301 on the mainboard.
-
Sensor Cable: This is a slimmer cable consisting of a combined 4-pin and 3-pin configuration. It begins as a 7-pin connection at the CN303 (refer to the picture below) on the mainboard. When it reaches the printhead carriage, it separates into two cables.
