7-pin Carriage CR Encoder & PW Sensor FFC Cable for Epson EcoTank ET-2750
This is the Sensor FFC Cable For Epson ET-2750, ET-2760. You can use it for other EcoTank printers that use same pin configuration and length. However, their folding may be...
$7.99
SKU:
PPO-EP-FFC-ST2K-7x1
Categories:
Tags:

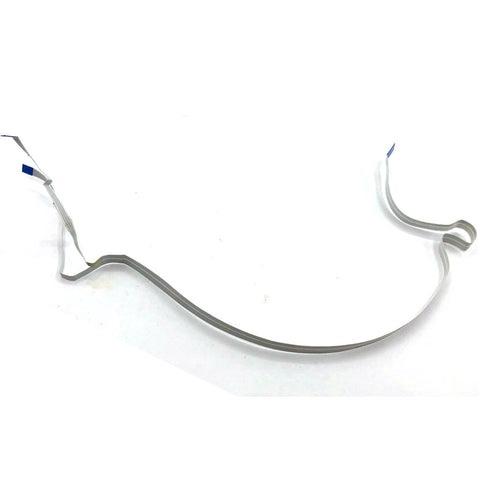

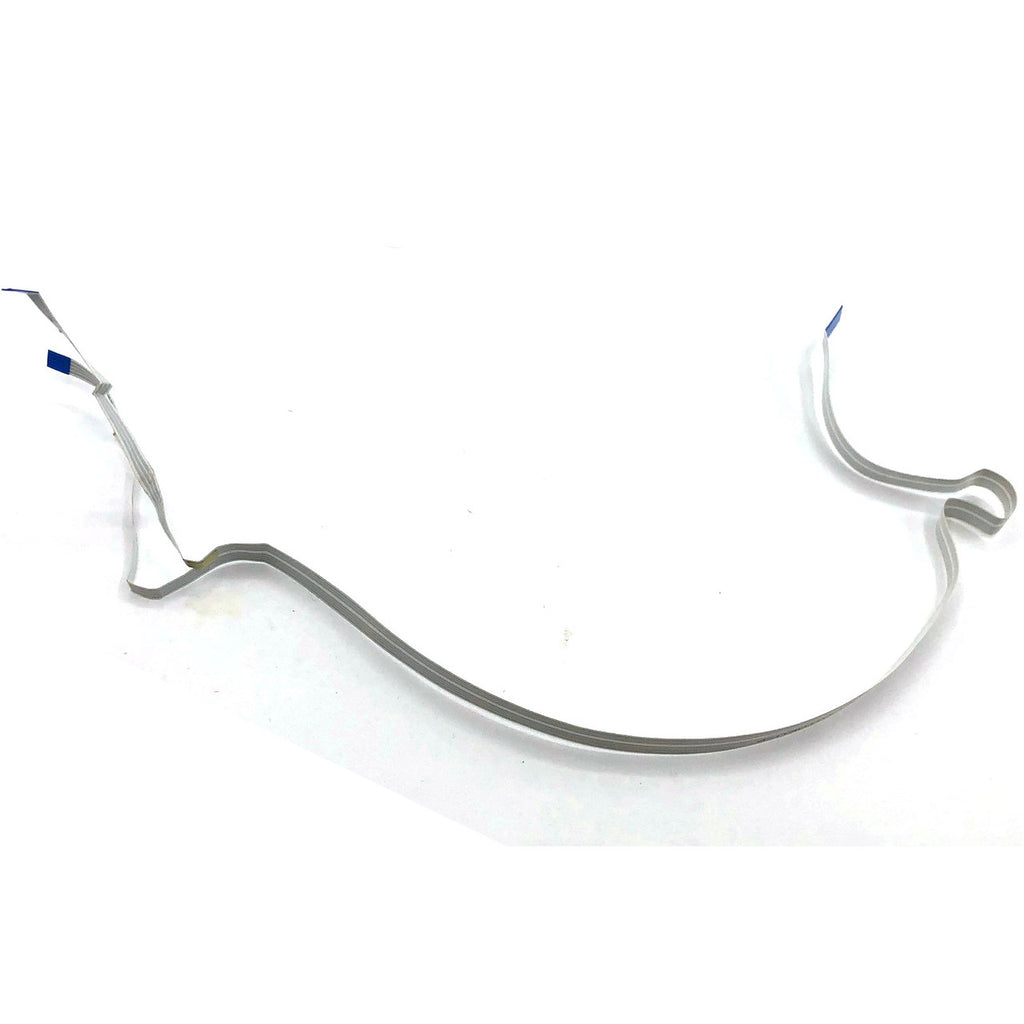

This is the Sensor FFC Cable
For Epson ET-2750, ET-2760. You can use it for other EcoTank printers that use same pin configuration and length. However, their folding may be different and you may need to fold it in a different way. Each cable should stand 20+ 180-degree foldings.
- Pin: 7-pin: 4 pin + 3 pin
- Length: 390 mm, about 15.3 inches

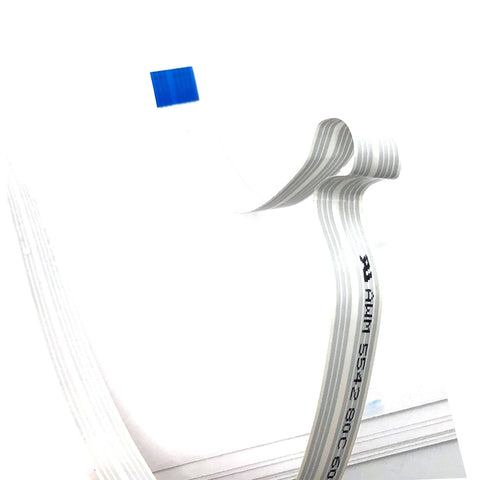

- Folding: the cable is taken from ET-2750 or ST-2000

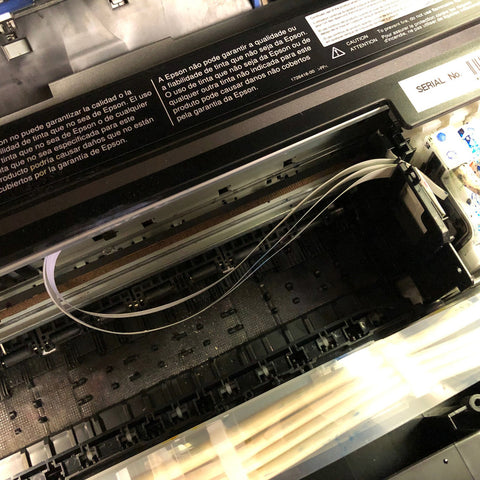

Two cables are connected to the printhead carriage:
-
Printhead Cable: This is a broad 20-pin cable that plugs into the printhead at the printhead carriage. It then bifurcates into two 10-pin separate cables, which subsequently converge again to connect to the CN301 on the mainboard.
-
Sensor Cable (this product): This is a slimmer cable consisting of a combined 4-pin and 3-pin configuration. It begins as a 7-pin connection at the CN303 (refer to the picture below) on the mainboard. When it reaches the printhead carriage, it separates into two cables. The 4-pin cable goes to the back of the carriage (CR Encoder), and the 3-pin goes underneath the carriage (PW Sensor).
