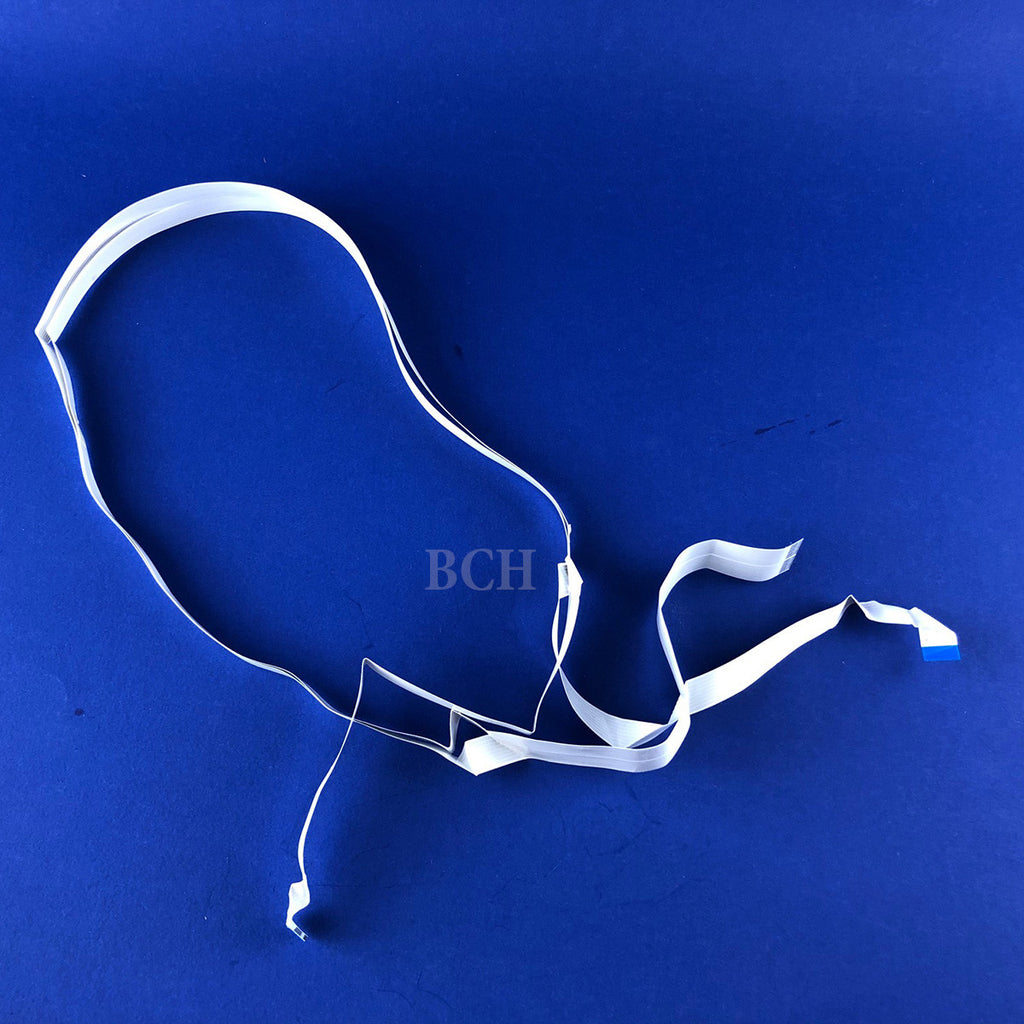

8x2 Pins FFC Flat Flex Cable for Epson WorkForce WF-3640 WF-3620 Printhead - 19 mm x 70 cm

Availability:
In-Stock
Pins: 16 pins total, 8 pin each side with a gap in the middle (see picture).  The cable is splited into two 8 pins at one end.Width: 19 mmLength: 70...

$3.99

Title

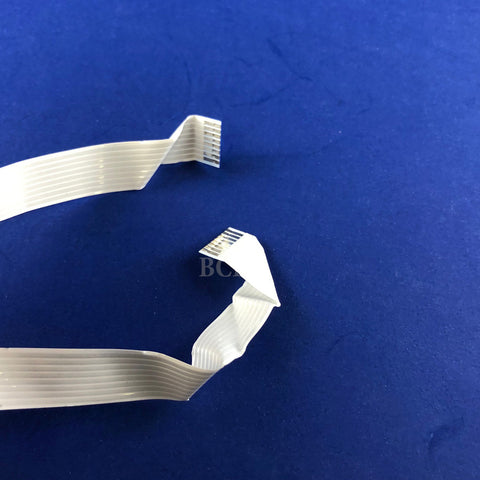

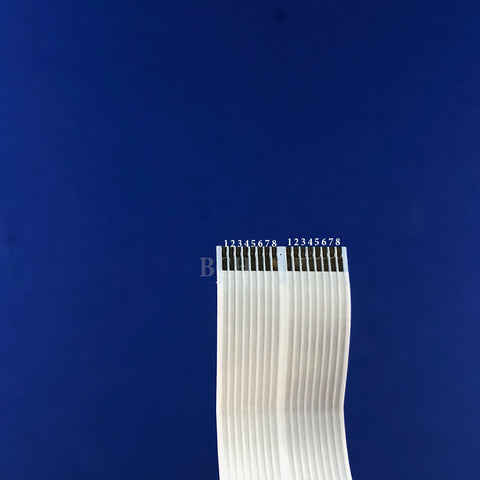

Pins: 16 pins total, 8 pin each side with a gap in the middle (see picture).  The cable is splited into two 8 pins at one end.
Width: 19 mm
Length: 70 cm (27 inches)

Used in: Epson WorkForce (WF-3600's: 3620, 3640, 3650...)

Product Model: AWM 20624
UL Style No: 20706 (copper wire)
Flame Resistance: UL 758 VW-1
RoHS:Yes
Halogen Free:Yes
Temperature Rating: -40 to +80°C

Electrical
Voltage (max.): 60V
