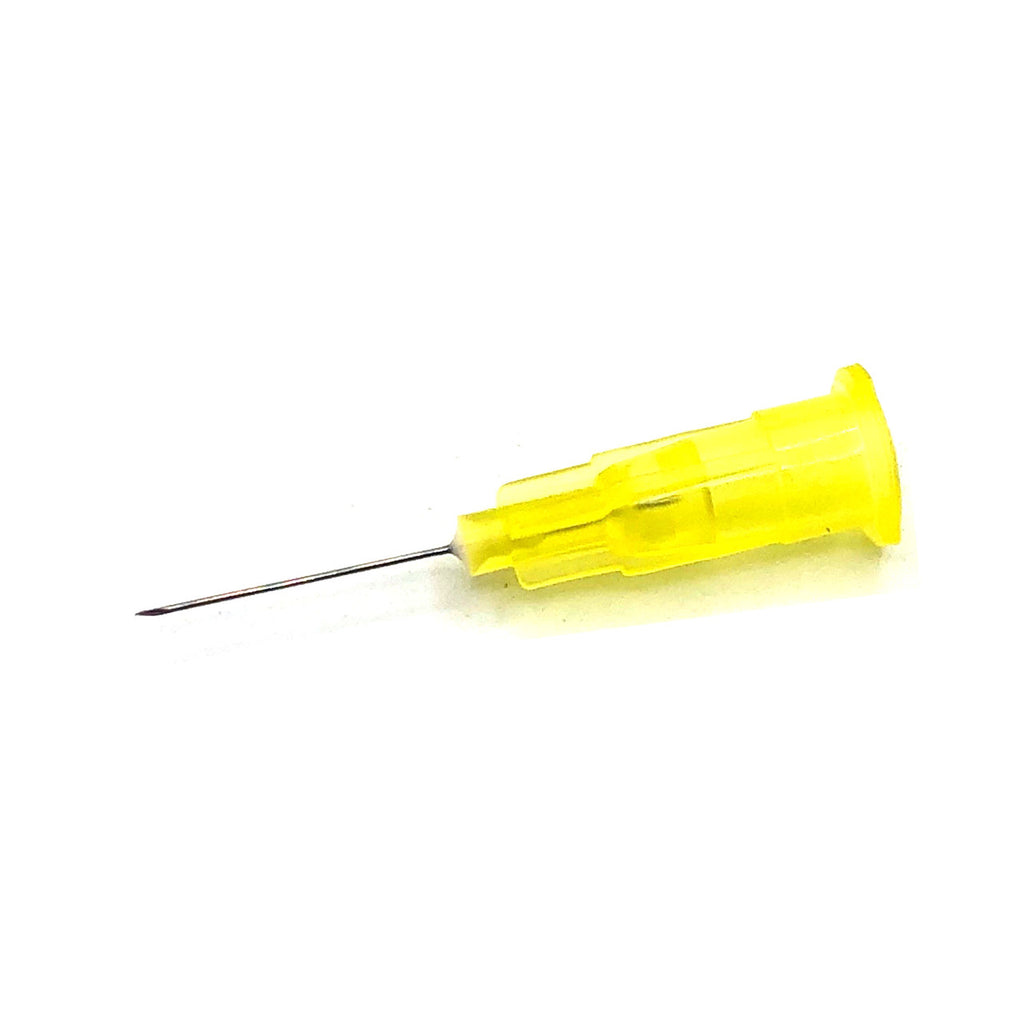

Precision Micro Injection Needles for Printhead Maintenance with 5ml Syringe - Ultra-Thin, Multiple Diameters and 12mm Length
Introducing our precision micro injection needles, specially designed for printhead maintenance. Ideal for injecting cleaning solutions and wetter solutions to ink channels, these ultra-thin needles boast a diameter thinner than...
$3.59
SKU:
AS-MicroNeedle-27G
Categories:
Tags:

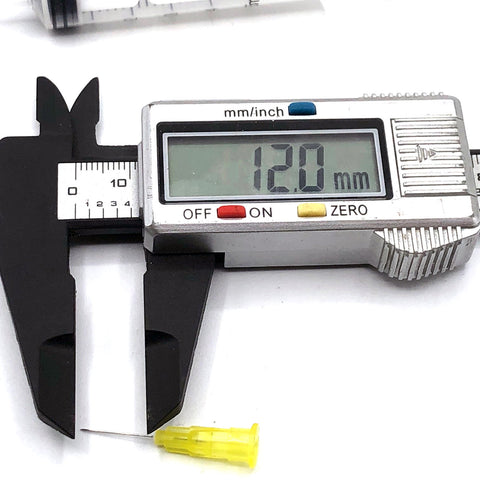

Introducing our precision micro injection needles, specially designed for printhead maintenance. Ideal for injecting cleaning solutions and wetter solutions to ink channels, these ultra-thin needles boast a diameter thinner than that of typical medical injection needles, making them perfect for delicate procedures. With a length of 12 mm and available in multiple diameters, our needles are best suited for working on larger 0.6mm ink intake tubes and other components. While not small enough to fit through a 10 micrometer nozzle, our needles are essential for ensuring optimal printhead condition and achieving high-quality print results. Find your perfect fit using the accompanying chart, which includes the needle's dead volume, defined as the residual solution remaining after injection. Upgrade your maintenance routine with our must-have precision injection needles.

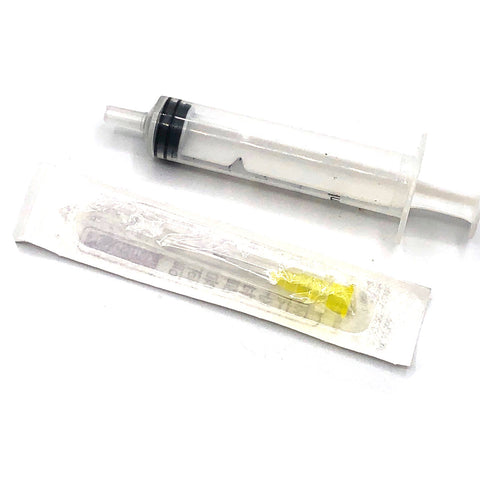

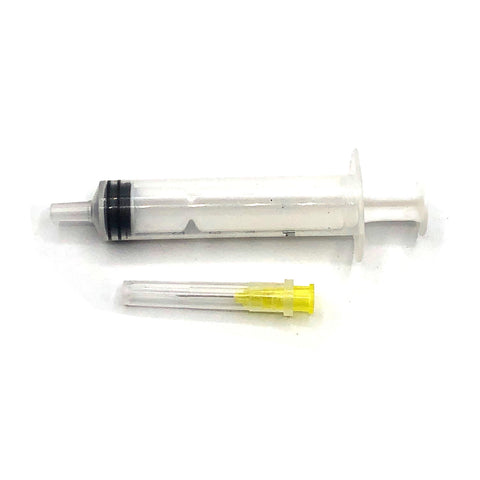

Package include:
- 1 x Micro Needle (select the gauge size above)
- 1 x 5 ml Syringe
| Gauge Number | Needle Nominal O.D. (mm) |
Needle Nominal I.D. (mm) |
Needle Wall Thickness (mm) |
Needle Dead Volume
(µL/25.4 mm) |
| 34 gauge needle | 0.159 | 0.051 | 0.051 |
0.052 µL/25.4 mm
|
| 33 gauge needle | 0.21 | 0.108 | 0.051 |
0.233 µL/25.4 mm
|
| 32 gauge needle | 0.235 | 0.108 | 0.064 |
0.233 µL/25.4 mm
|
| 31 gauge needle | 0.261 | 0.133 | 0.064 |
0.353 µL/25.4 mm
|
| 30 gauge needle | 0.312 | 0.159 | 0.076 |
0.504 µL/25.4 mm
|
| 29 gauge needle | 0.337 | 0.184 | 0.076 |
0.675 µL/25.4mm
|
| 28 gauge needle | 0.362 | 0.184 | 0.089 |
0.675 µL/25.4 mm
|
| 27 gauge needle | 0.413 | 0.21 | 0.102 |
0.876 µL/25.4 mm
|
| 26s gauge needle | 0.474 | 0.127 | 0.178 |
0.322 µL/25.4 mm
|
| 26 gauge needle | 0.464 | 0.26 | 0.102 |
1.349 µL/25.4 mm
|
| 25s gauge needle | 0.515 | 0.153 | 0.178 |
0.464 µL/25.4 mm
|
| 25 gauge needle | 0.515 | 0.26 | 0.127 |
1.349 µL/25.4 mm
|
| 24 gauge needle | 0.566 | 0.311 | 0.127 |
1.93 µL/25.4 mm
|
| 23s gauge needle | 0.642 | 0.116 | 0.267 |
0.268 µL/25.4 mm
|
| 23 gauge needle | 0.642 | 0.337 | 0.152 |
2.266 µL/25.4 mm
|
| 22s gauge needle | 0.718 | 0.168 | 0.279 |
0.563 µL/25.4 mm
|
| 22 gauge needle | 0.718 | 0.413 | 0.152 |
3.403 µL/25.4 mm
|
| 21 gauge needle | 0.819 | 0.514 | 0.152 |
5.271 µL/25.4 mm
|
| 20 gauge needle | 0.908 | 0.603 | 0.152 |
7.255 µL/25.4 mm
|
| 19 gauge needle | 1.067 | 0.686 | 0.191 |
9.389 µL/25.4 mm
|
| 18 gauge needle | 1.27 | 0.838 | 0.216 |
14.011 µL/25.4 mm
|
| 17 gauge needle | 1.473 | 1.067 | 0.203 |
22.715 µL/25.4 mm
|
| 16 gauge needle | 1.651 | 1.194 | 0.229 |
28.444 µL/25.4 mm
|
| 15 gauge needle | 1.829 | 1.372 | 0.229 |
37.529 µL/25.4 mm
|
| 14 gauge needle | 2.109 | 1.6 | 0.254 |
51.076 µL/25.4 mm
|
| 13 gauge needle | 2.413 | 1.804 | 0.305 |
64.895 µL/25.4 mm
|
| 12 gauge needle | 2.769 | 2.159 | 0.305 | 93 µL/25.4 mm |
| 11 gauge needle | 3.048 | 2.388 | 0.33 |
113.728 µL/25.4 mm
|
| 10 gauge needle | 3.404 | 2.693 | 0.356 |
144.641 µL/25.4 mm
|
