Master Data: Compare Multiple 3D Resin Strength - Compression Stress at Breaking

Availability:
In-Stock
Compression Strength at Breaking If you're in the 3D printing industry and want to make sure your resin-based prints are strong and durable, our product can help. We've conducted compression...

$38.87

Title
SKU:
3D-DataSheet-Master
Categories:

Compression Strength at Breaking

If you're in the 3D printing industry and want to make sure your resin-based prints are strong and durable, our product can help. We've conducted compression strength tests on various 3D resin materials, and our downloadable data provides insights into their strength. This data can help you choose the right resin for your specific application and improve the quality of your 3D printed parts and products.

Current Result

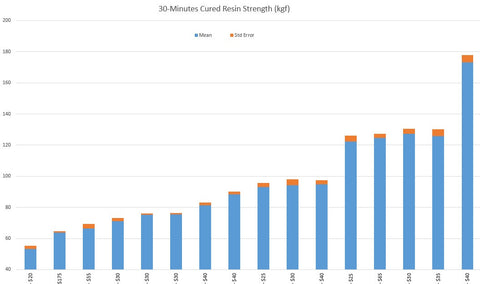

A visual depiction of the data is available in this graph. You have the option to download each data point in an Excel csv file. The brand and models have been cropped out, but the graph provides an idea of the data you will receive. The price is USD per 1,000 ml and the strength is measured as compression strength (kgf) at breaking. This graph is updated every time new data is uploaded.

Downloadable Data

Below are the key points of our compression strength measurements (kgf) for 3D resin:

  • We conducted compression strength at breaking point for cured resin
  • All resin are cured for 30 minutes
  • Most tests are 60 samples, except AnyCubic ABS-Like+

Tested Brands & Models

Our tests involved curing resin for 30 minutes and measuring compression strength at the breaking point. Most tests included 60 samples, except for AnyCubic ABS-Like+. Prices are USD per Kg when we purchased it, rouded to $5 increment.

Model Info Manufactured  Price
3D Materials PCS 1.8GPa Black https://amzn.to/3zXDTVI Korea  $    39.80
3DMaterials SuperPP Tough Clear 1.4Gpa https://tinyurl.com/3u593fcs Korea  $    40.00
3DMaterials SuperRigid Nano-Micro Ceramic Powder https://amzn.to/3SovIYS Korea $ 97.8
Anycubic ABS-Like Pro https://tinyurl.com/ycdssycr China  $    40.00
Anycubic ABS-Like+ https://tinyurl.com/mvfdauxh China  $    30.00
Anycubic Standard Resin https://tinyurl.com/2p94ynpp China  $    30.00
Anycubic Tough Ultra https://tinyurl.com/5deup3jm China  $    44.00
Anycubic UV Tough  https://tinyurl.com/47yy2862 China  $    45.00
Dr.3D ABS-Like Resin https://tinyurl.com/3bnpthus China  $    30.00
FlashForge Standard https://tinyurl.com/mr3rbw8b China  $    25.00
FormA($40) n/a Lab Test  $    40.00
iFun ABS-Like if3129 https://tinyurl.com/43b29466 China $ 40
Liqcreate Strong-X  https://tinyurl.com/47rrj5uh Netherland  $  175.00
Photocentric High Tensile https://tinyurl.com/tsvt3kp4 UK  $    75.00
Phrozen ABS-Like Matte https://tinyurl.com/mr7v2d2t Taiwan  $    40.00
Phrozen ABS-Like+ Gray https://tinyurl.com/bt82uty9 Taiwan  $    69.99
RESIONE Tough 3D Printer Resin https://tinyurl.com/9t5bf9c6 China  $    65.00
Voxelab Sandard Resin https://tinyurl.com/mvzfz9wv China  $    20.00
Weistek Standard Resin https://tinyurl.com/4e5thyew China  $    30.00

Testing Method

Most resin do not publish their compression breaking strength. They use tensile modulus instead, which is defined as the ratio of its tensile stress (force per unit area) to its strain (relative deformation) when undergoing elastic deformation. However, we are more interested in the "point of failure", which is the measures the maximum stress a specimen can withstand before breaking. Please notice the tensile modulus is much different than the tensile strength at breaking. For example, here is data from Phrozen ABS-Like resin:

  • Tensile Stress at Break: 10 MPa
  • Tensile modulus: 116 MPa

We compared our results to some published data from manufacturers and found that our measurements were reliable and accurate. For example, we tested Phrozen ABS-Like resin and found that our measurement of 94.7 kgf (9.28 Mpa) was very close to the manufacturer's specification of 10 MPa.



Here are some additional details about the testing methodology:

  • The strength test unit used was kgf (1 Mpa = 10.19 kgf).
  • The samples used in the tests were square-shaped, measuring 20 mm by 200 mm, with a thickness of 1 mm.
  • We conducted the tests using a digital push-pull meter.
  • For more information about the testing setup, please refer to the video provided below.
